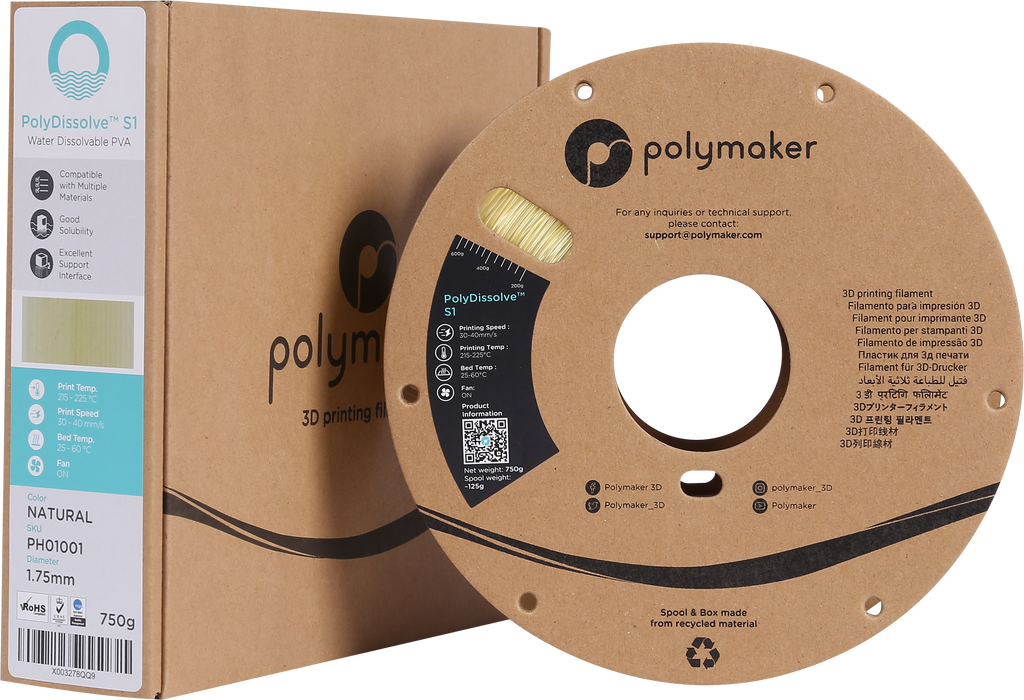

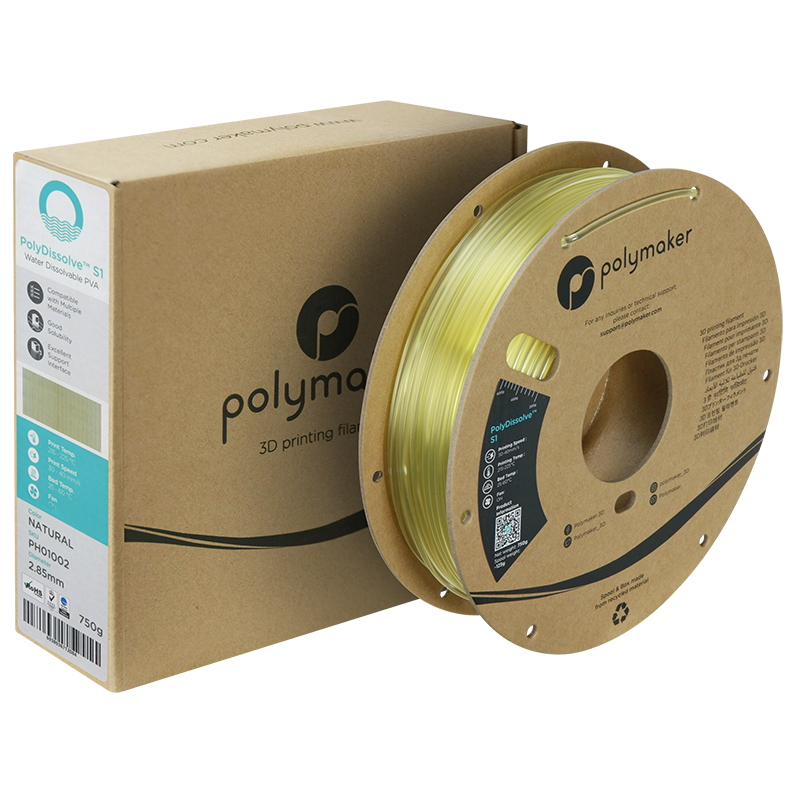

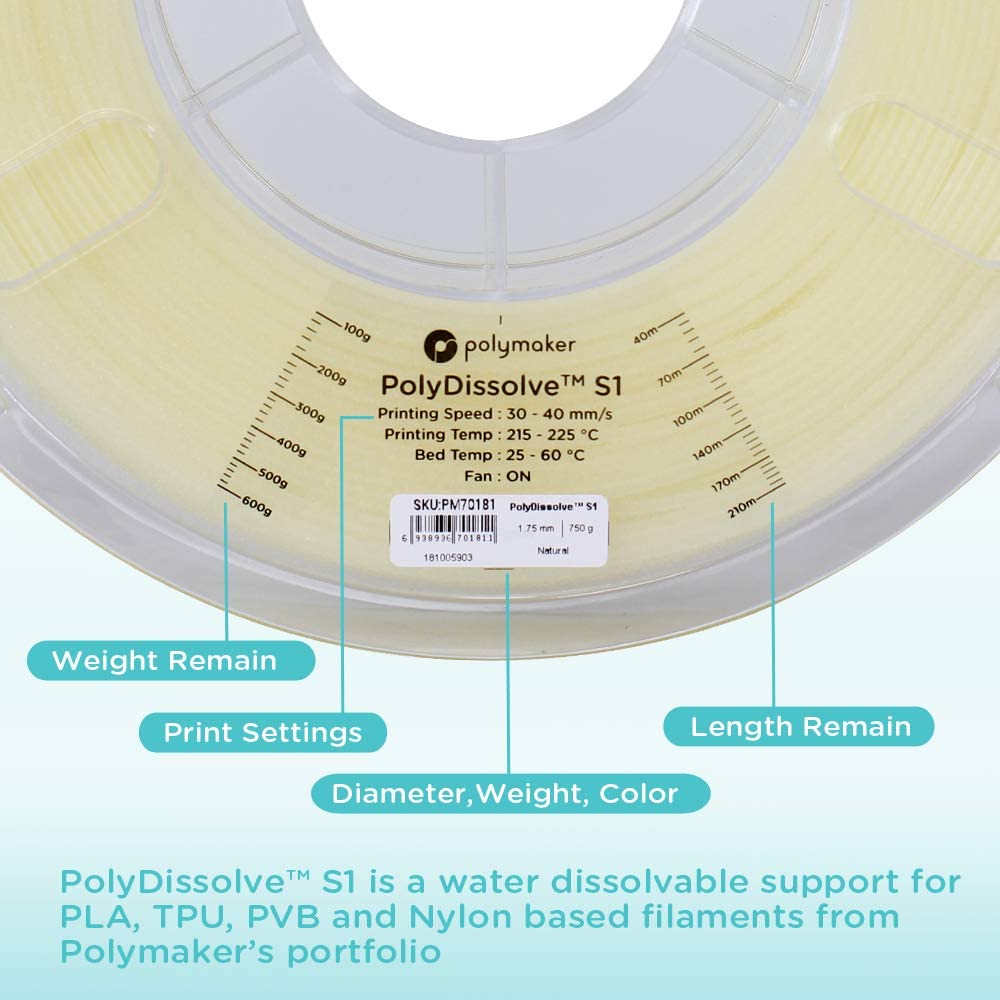

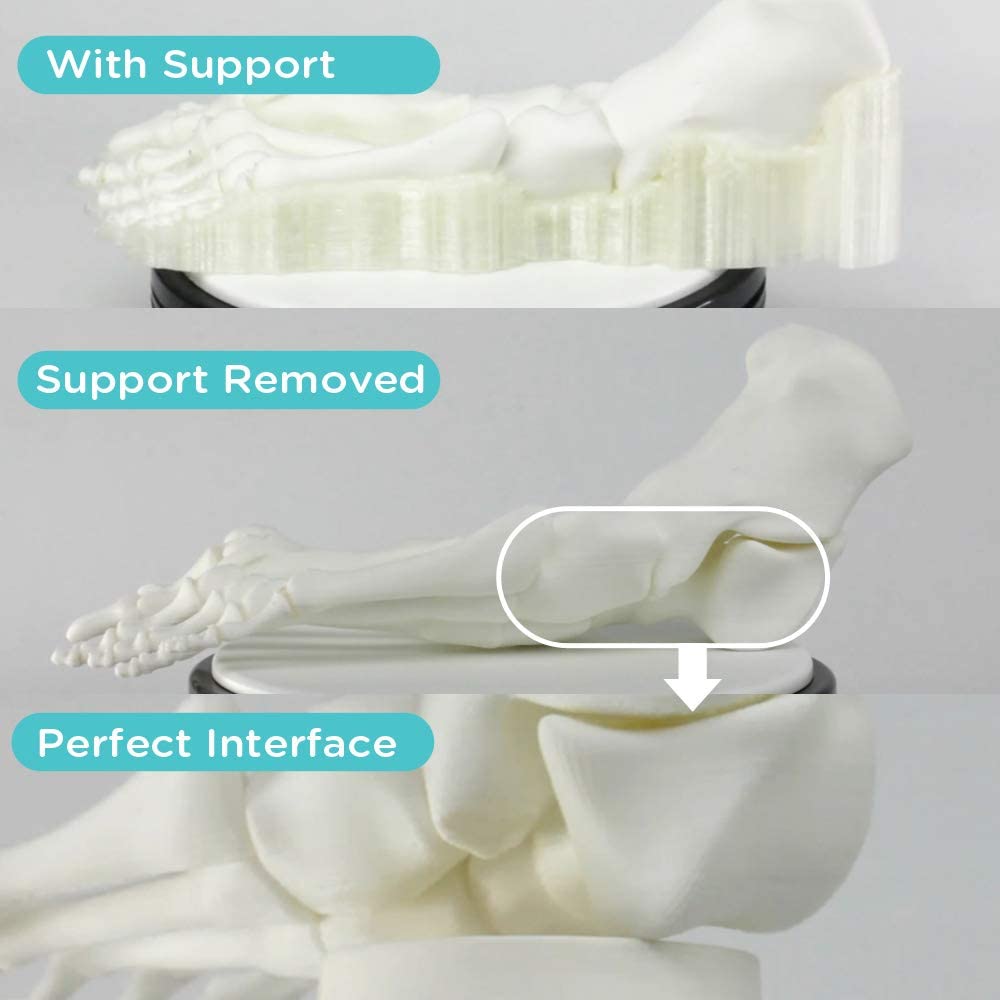

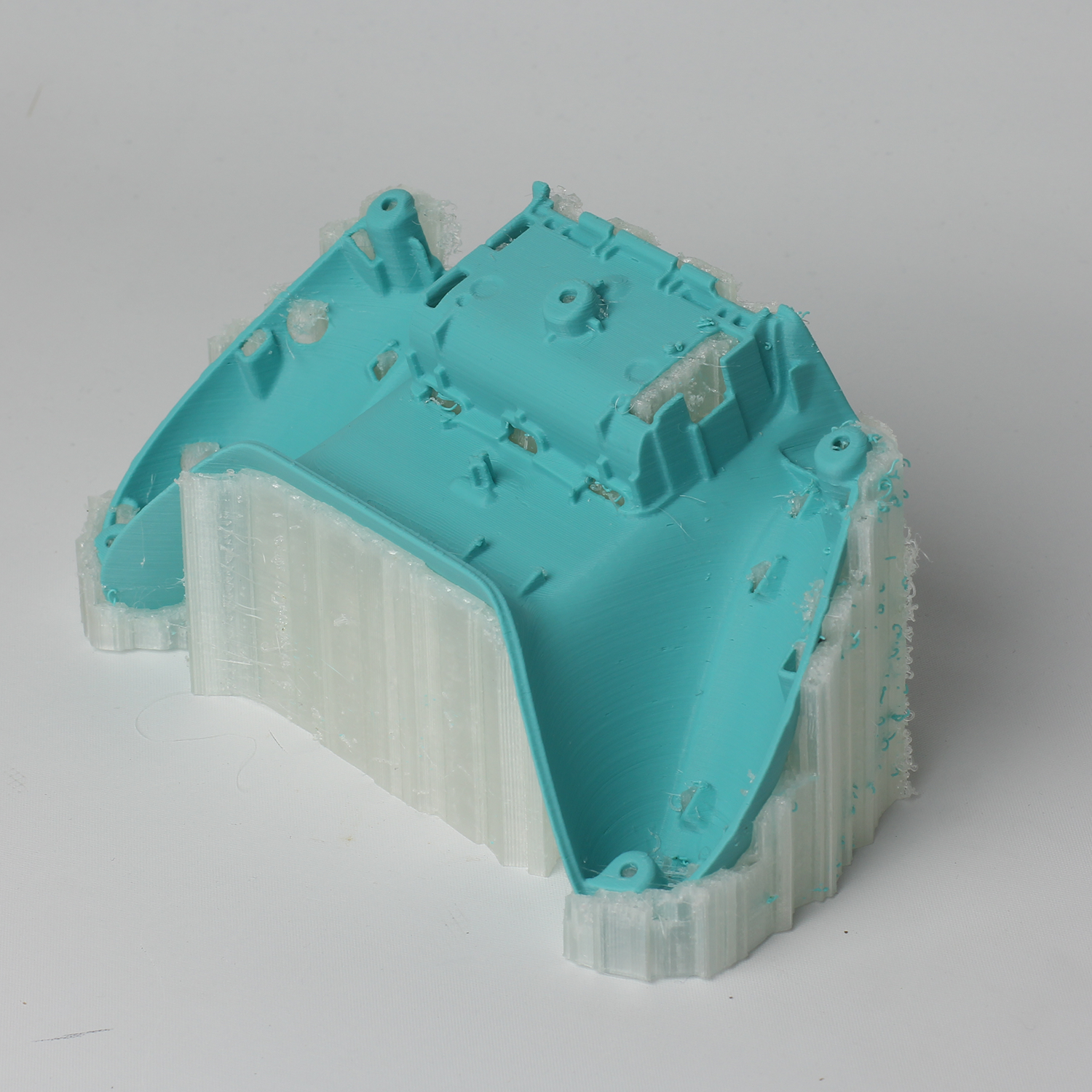

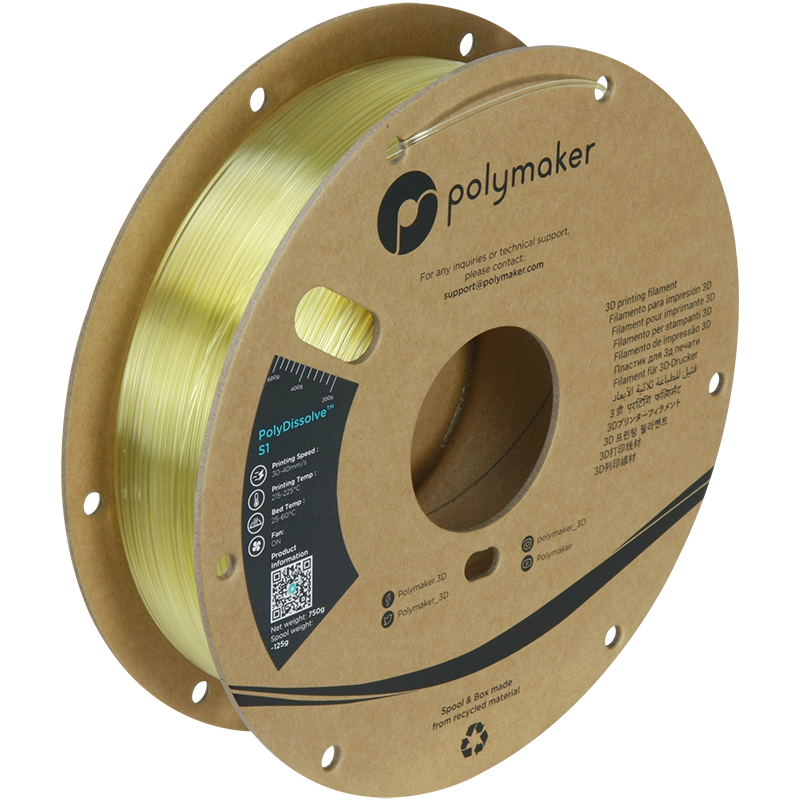

PolyDissolve™ S1 is a PVA based water dissolvable support for PLA, TPU, PVB and Nylon based filaments from our portfolio. It is specifically engineered to have a perfect interface with these materials while also displaying good solubility.
What material can PolyDissolve™ S1 support?
PolyDissolve™ S1 can support PLA, PVB, TPU and Nylon based materials from our portfolio.
Printing and Drying Settings?
Printing Temperature: 215˚C - 225˚C
Bed Temperature: 25˚C - 60˚C
Printing Speed: 30mm/s - 40mm/s
Fan: ON
Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Drying Settings: 80˚C for 12h
(Only if the material has absorbed moisture)
PolyDissolve™ S1 is very hygroscopic, please make sure to use a dry box.

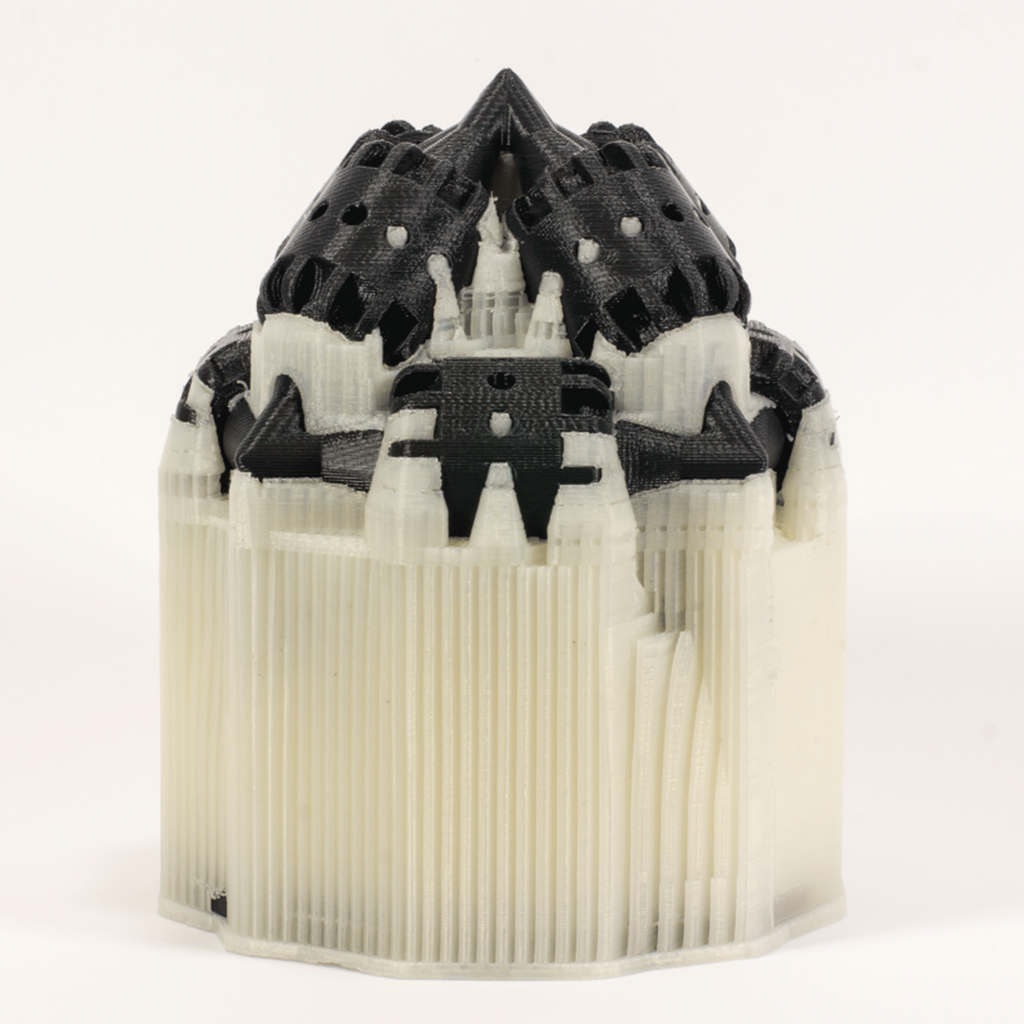

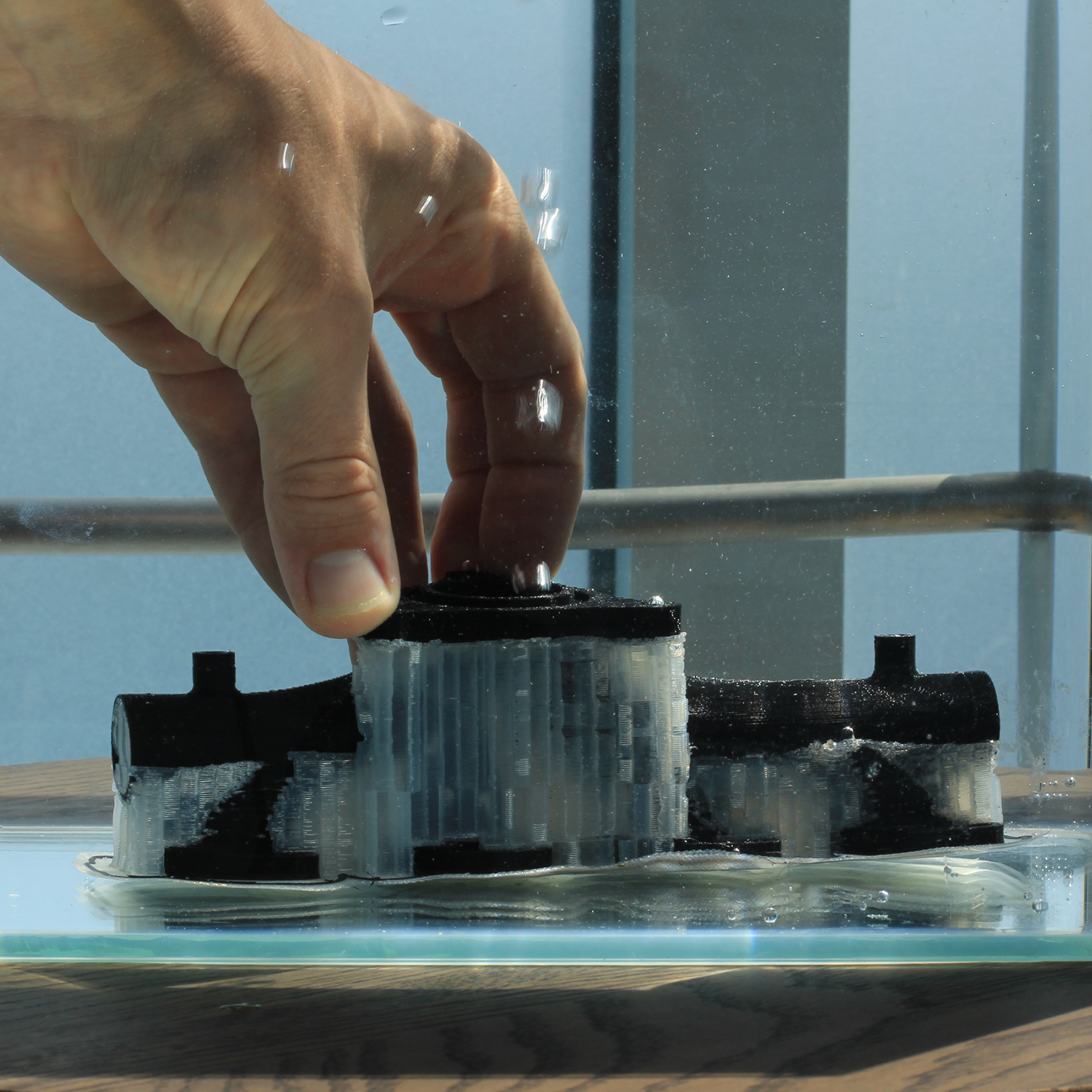

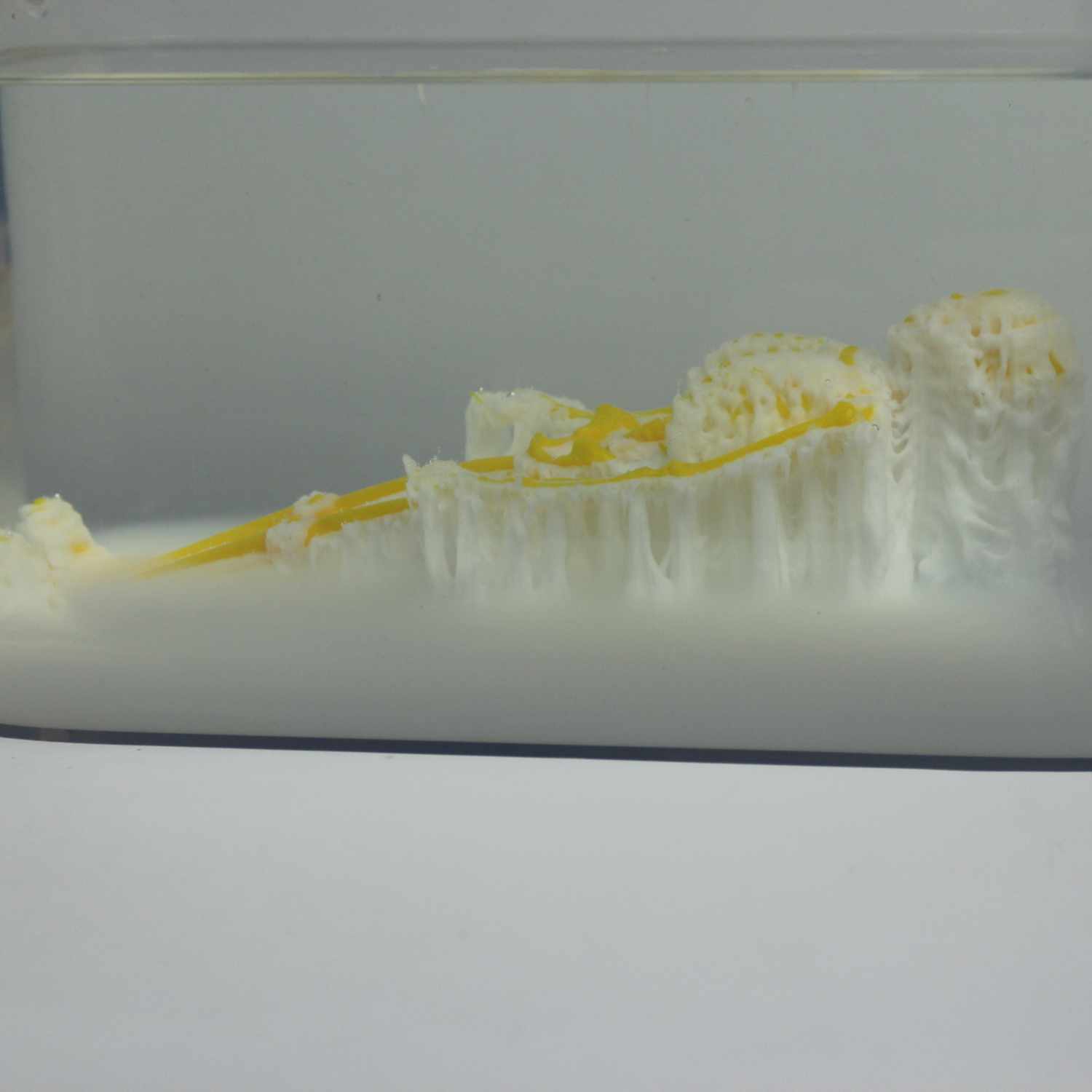

How long does it take for PolyDissolve™ S1 to dissolve?
It can take 6-12hours to fully dissolve depending on your setup.
You can speed up the process:
- By increasing the water temperature
- By changing the water regularly
- By adding a pump to make the water flowing

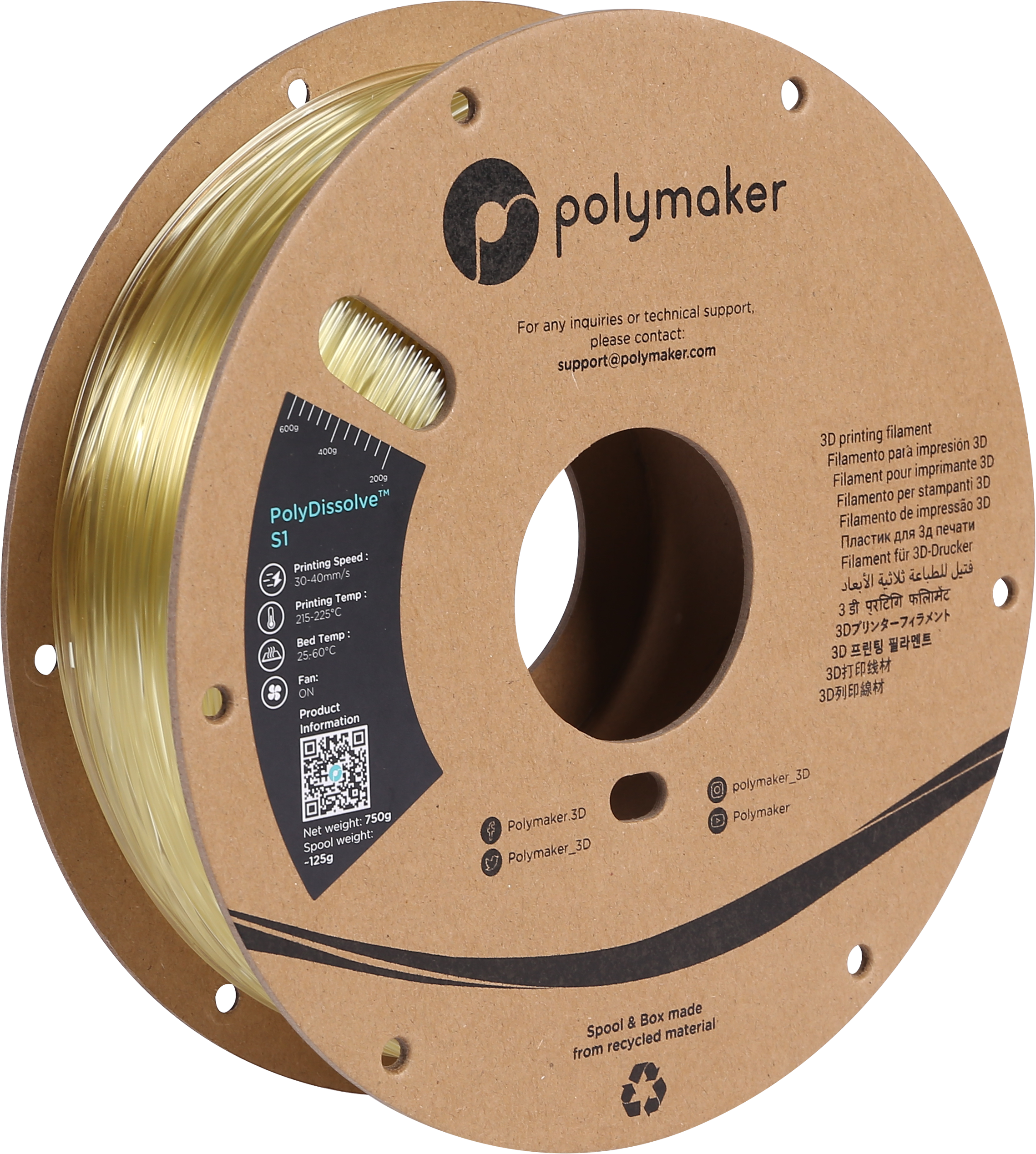

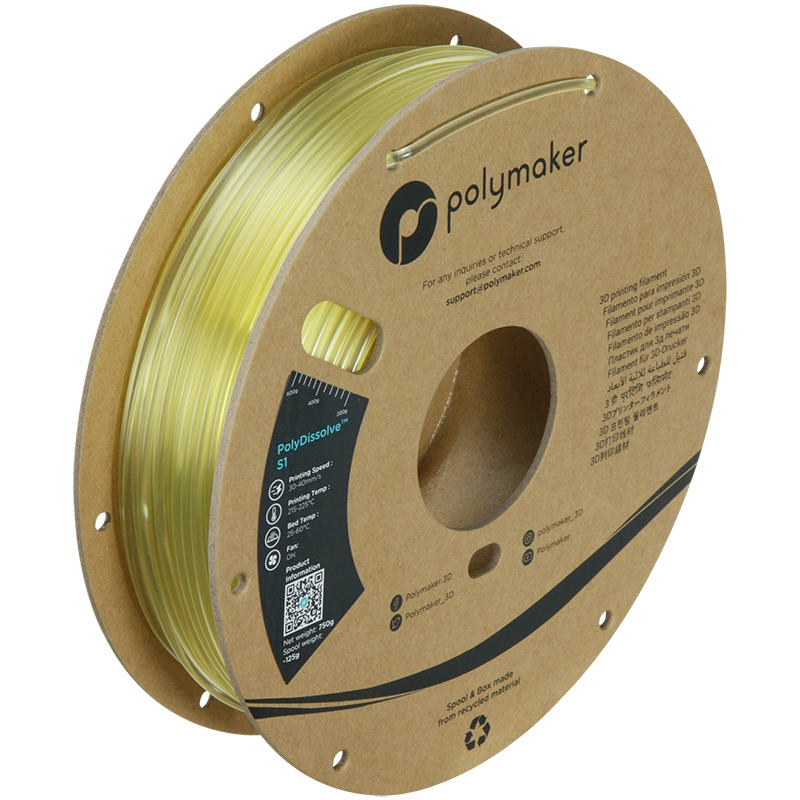

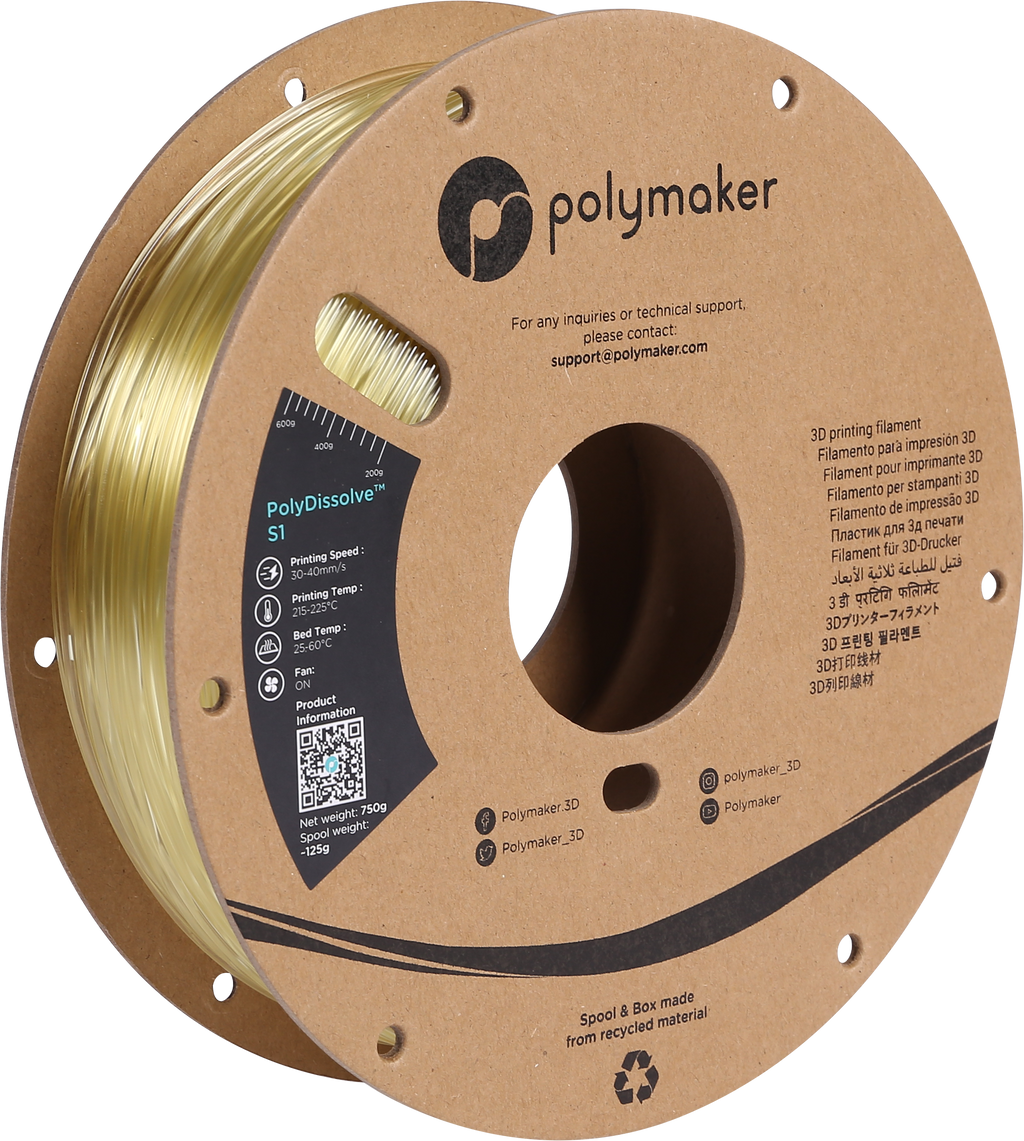

Spool Dimensions?
0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g
0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g
1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g
2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g
3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g
5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
